Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

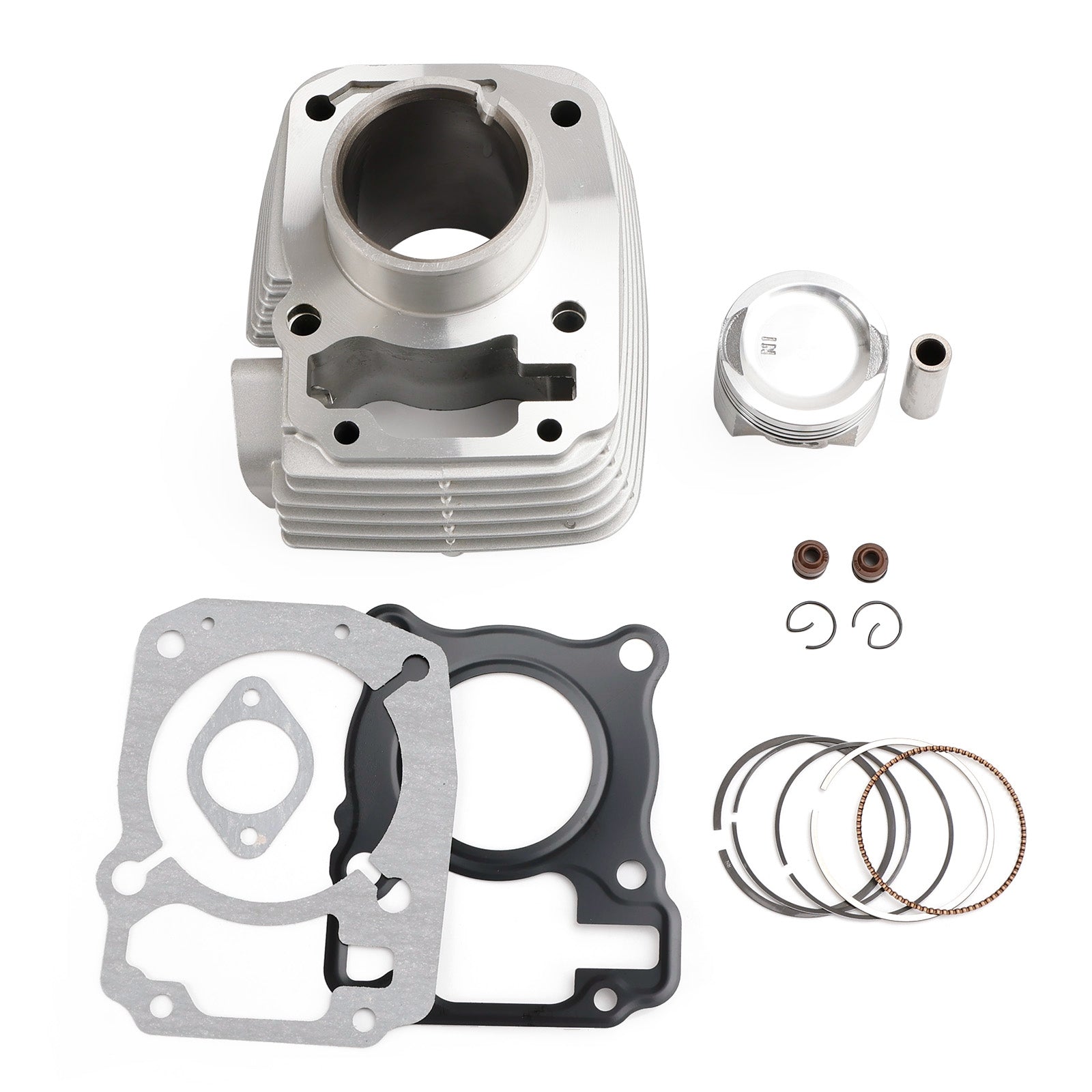

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 52.4mm, 13mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Bore Type: Standard Bore
Bore diameter: 52.4mm
Stroke: 57.8mm
Pin diameter: 13mm

Replacement Part Number:

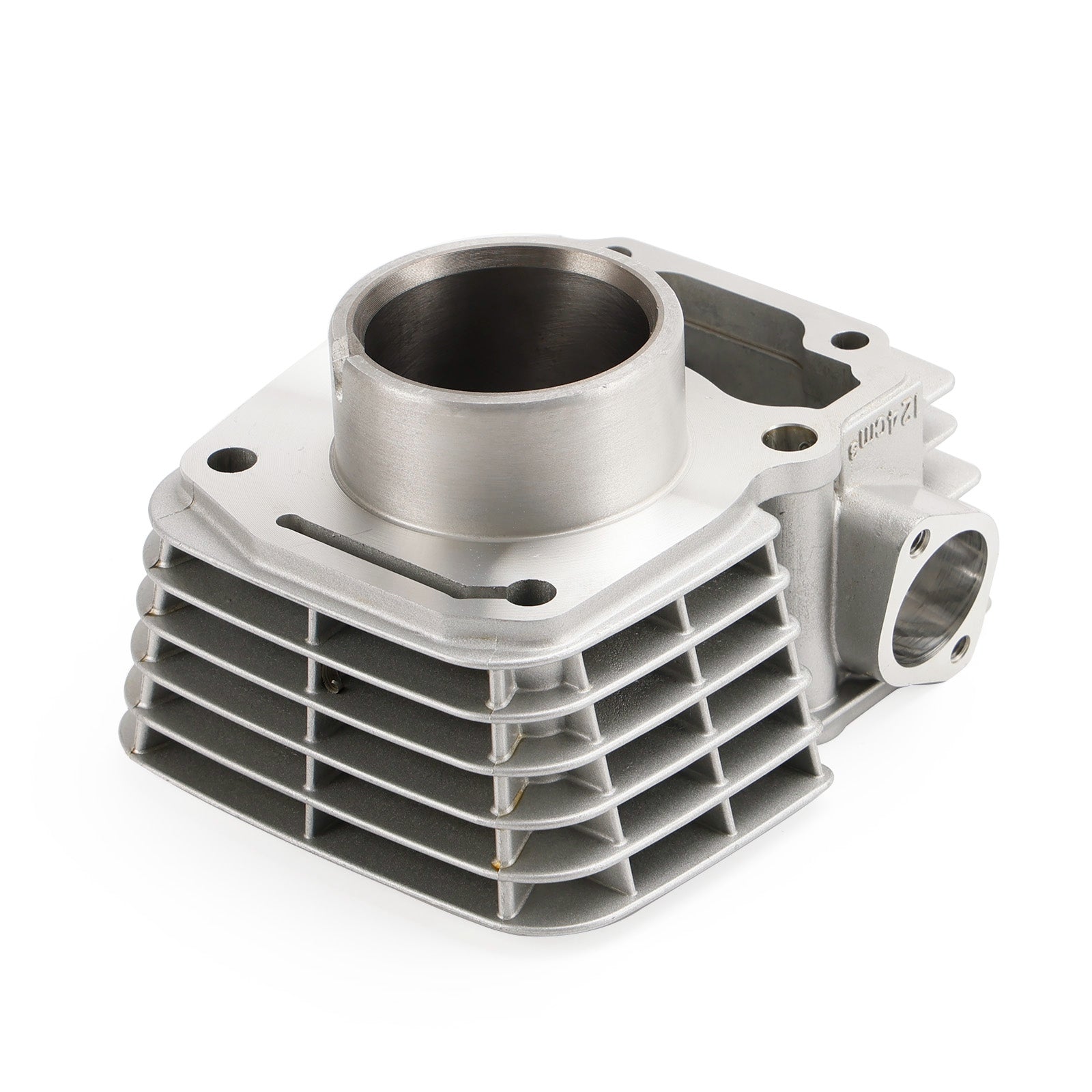

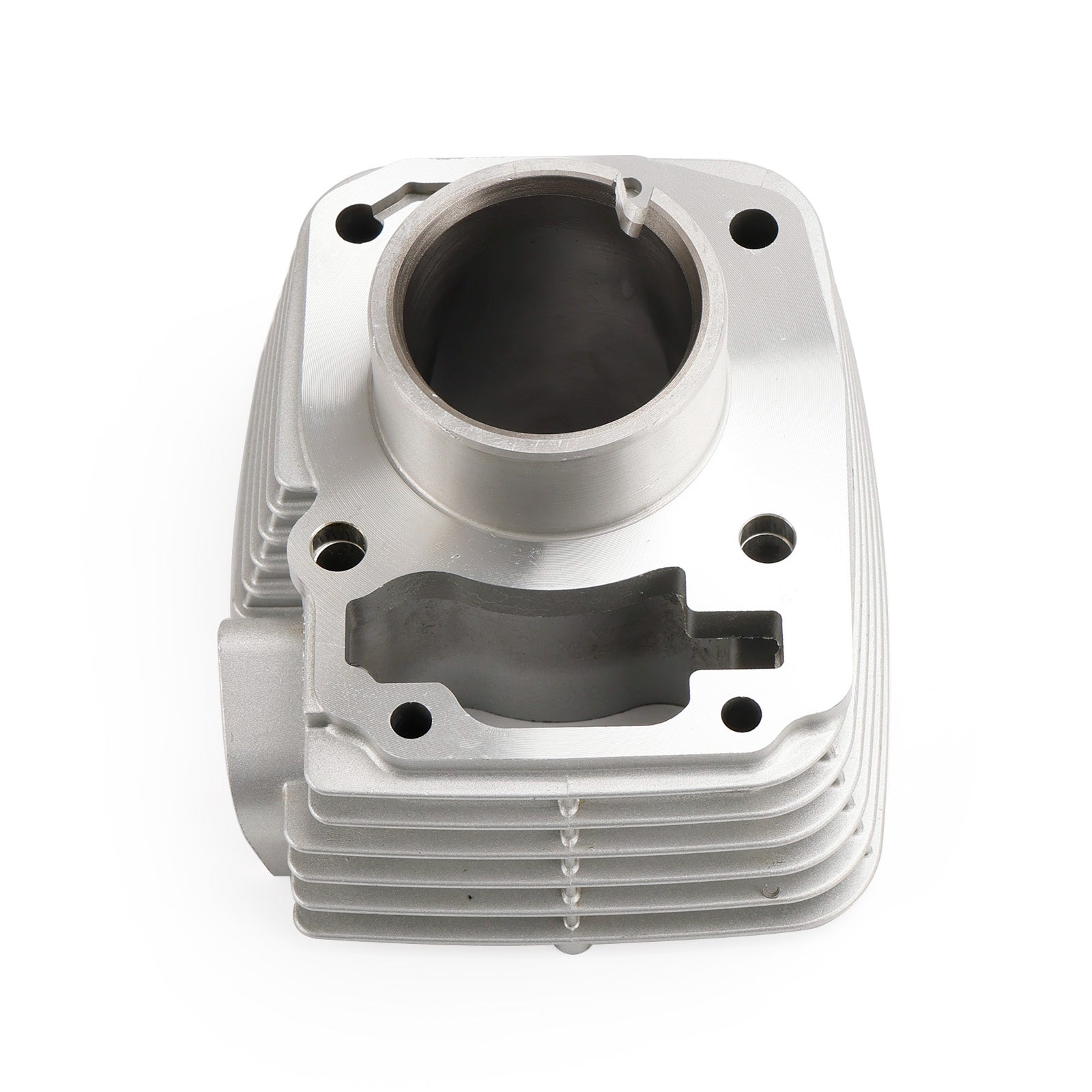

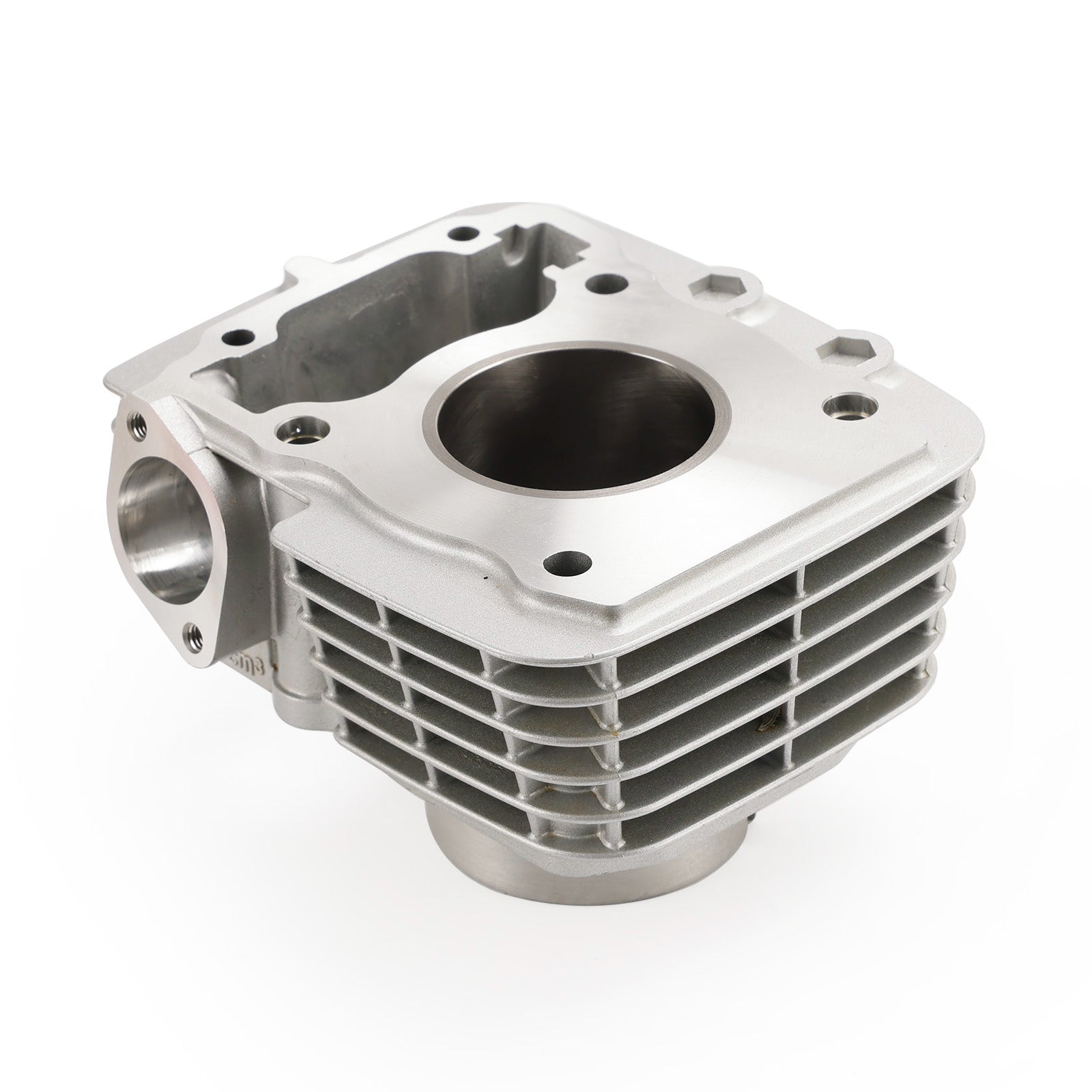

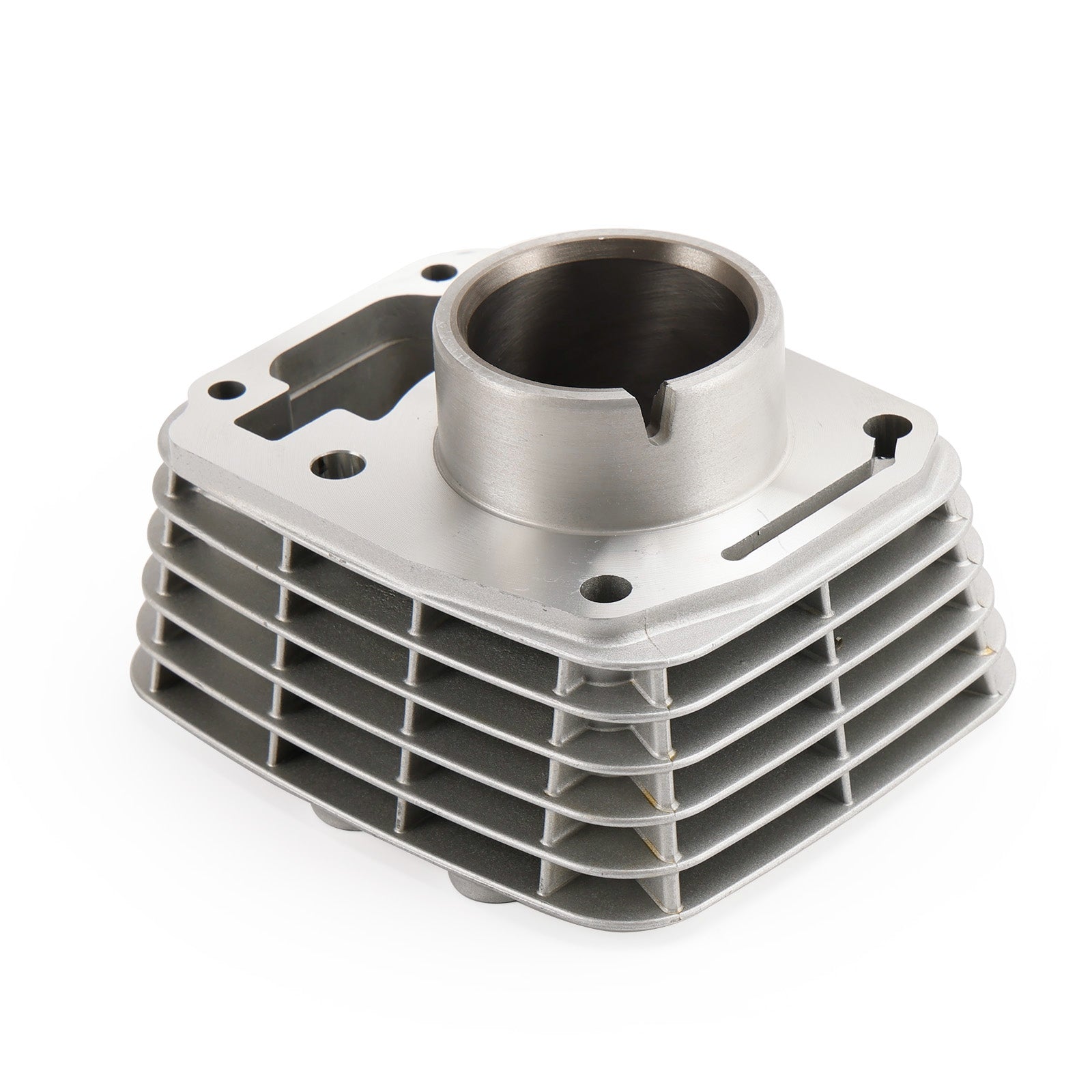

Cylinder: 12100-KRH-780, 12100-KTE-910, 12100-KWF-900, 12100-KWF-960

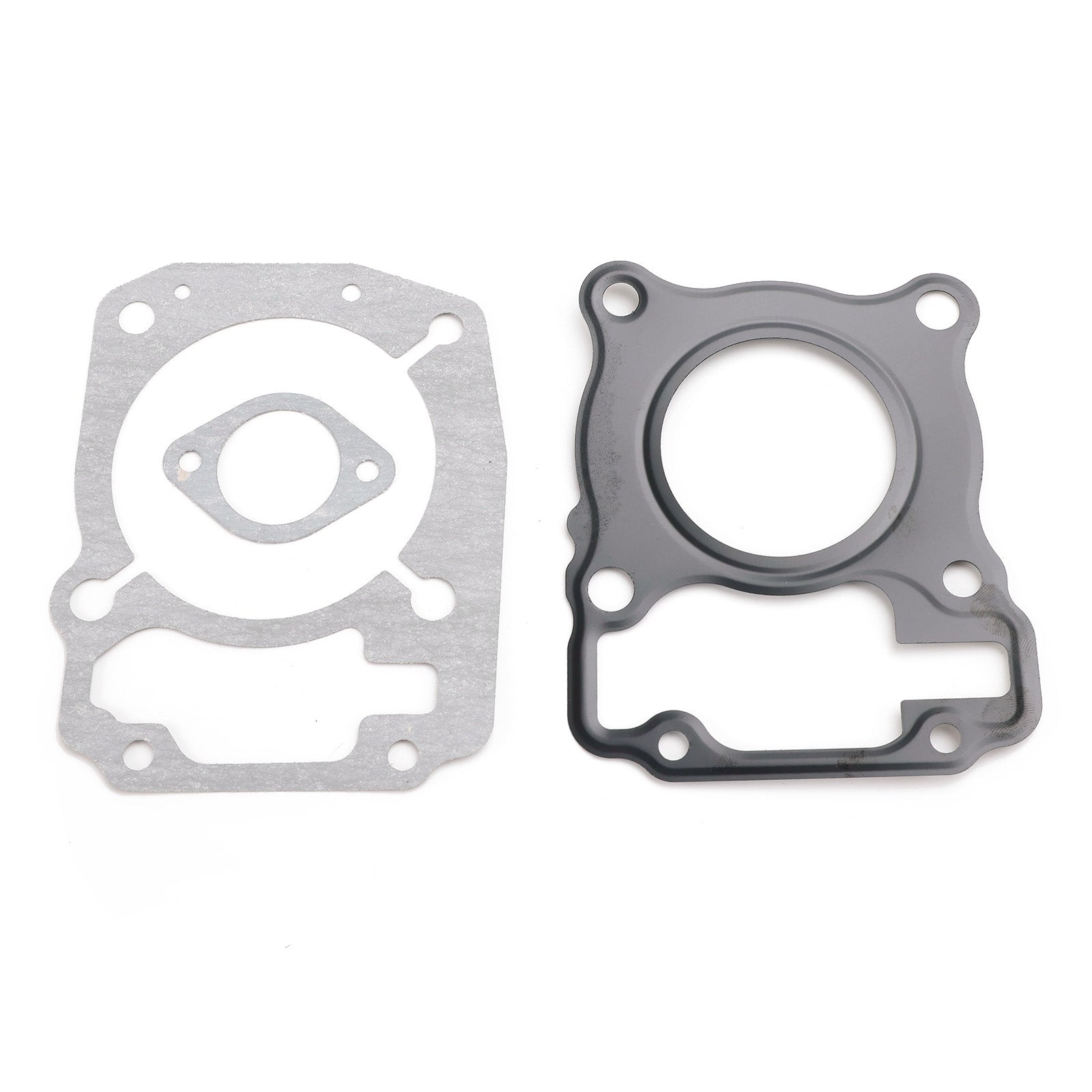

Cylinder Base Gasket: 12191-KWK-900
Cylinder Head Gasket: 12251-KTE-911, 12251-KVX-A00
Chain Tensioner Gasket: 14560-KSP-910

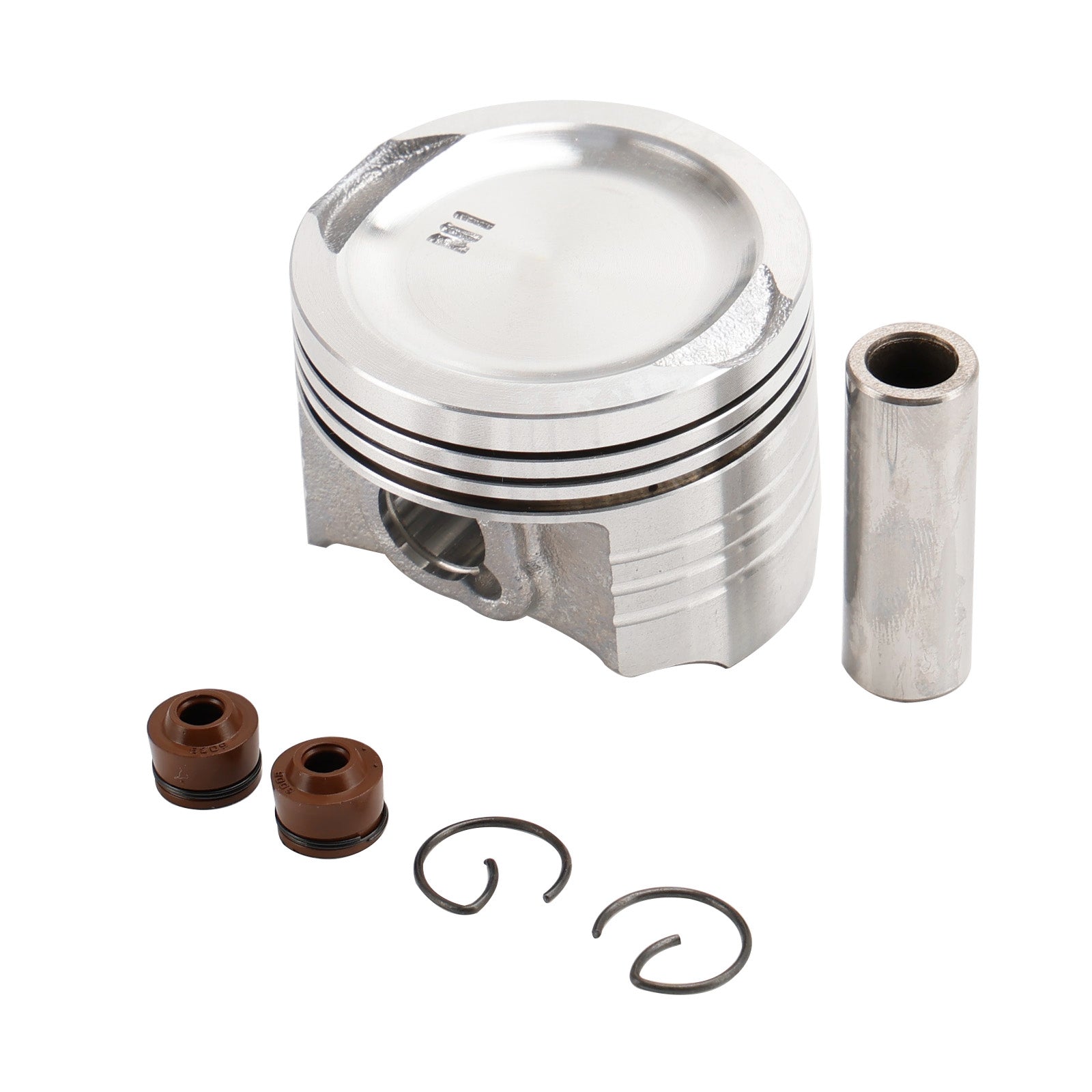

Piston (Std): 13101-KTE-910
Pin, Piston: 13111-KVX-600

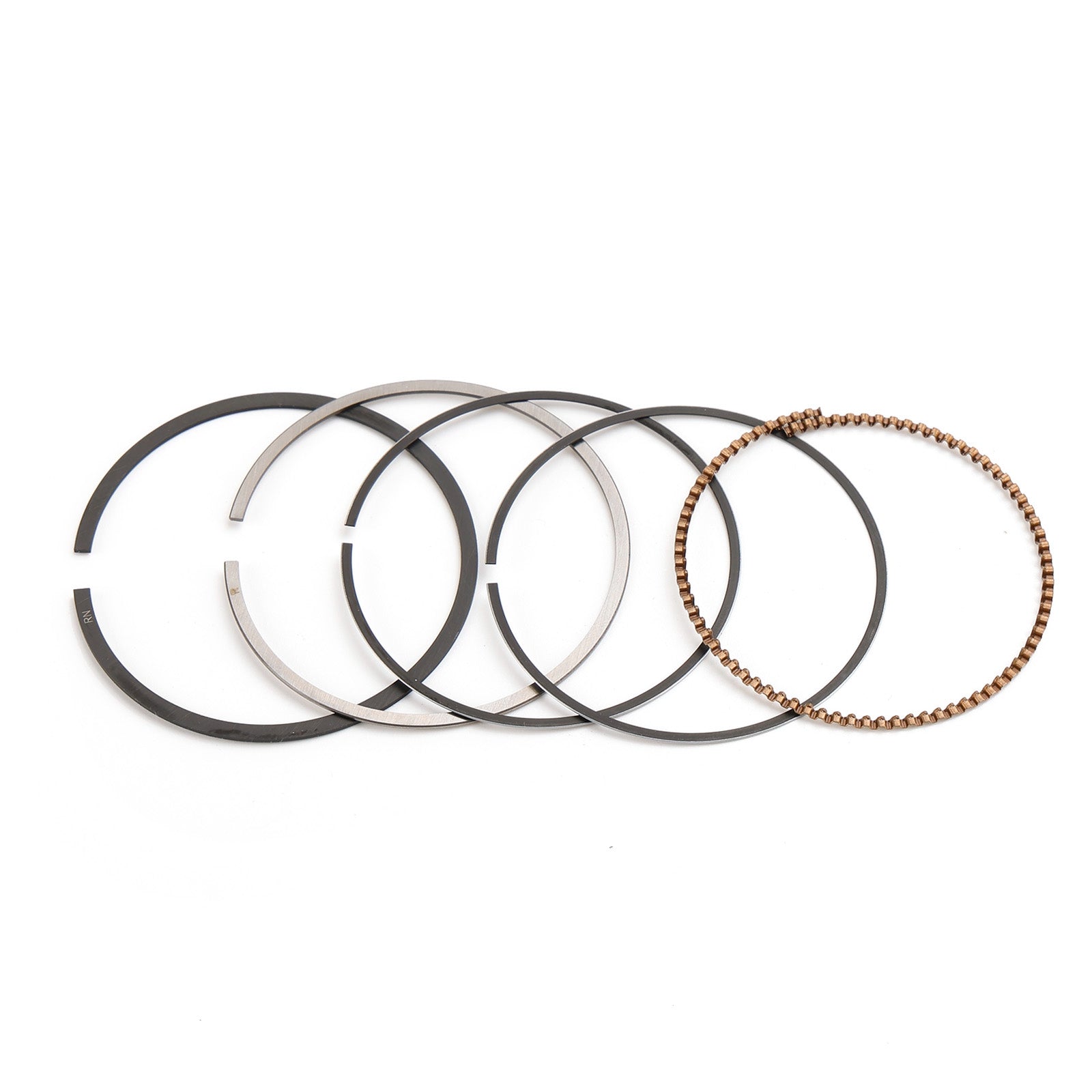

Piston Ring Set (Std): 13011-KVX-600
Circlips, piston: 13115-GN5-910

Fits Models:
Fit for Honda XR 125 L 2012-2023
Fit for Honda CBF 125 M 2006-2017

Package includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
2x Valve Stem Seals

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
